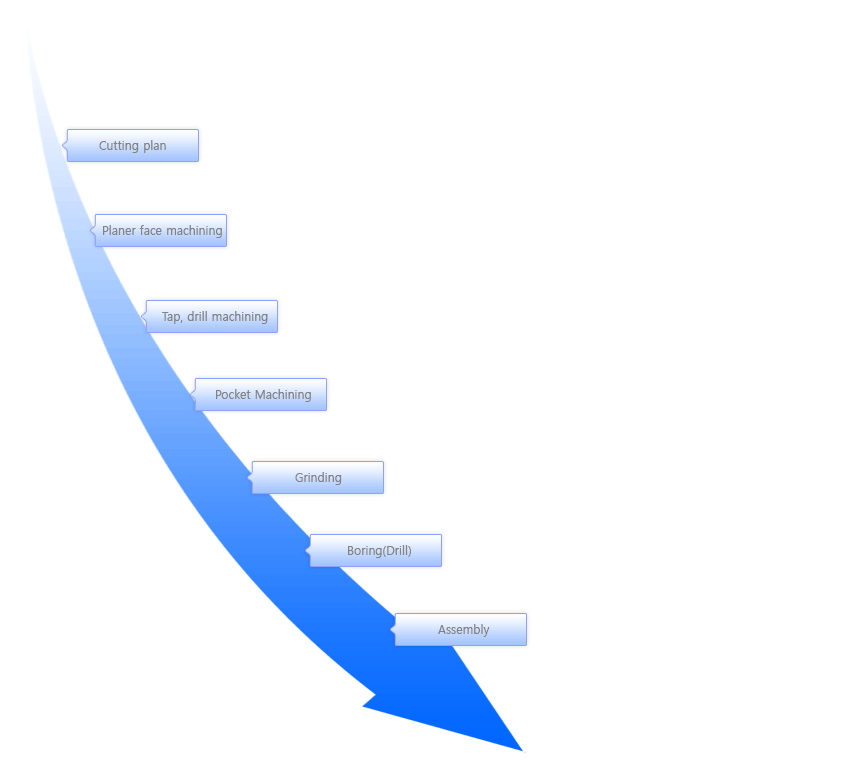

Manufacture Process

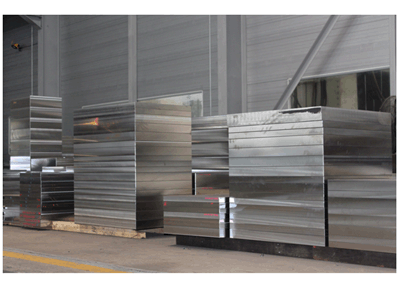

Cutting plan

Cutting off raw materials as per standard

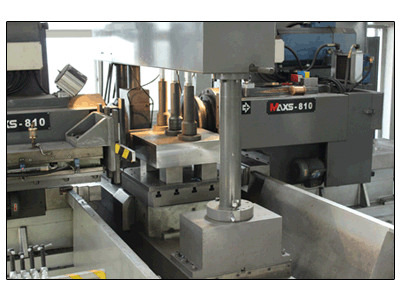

Planer face machining

Machining the anneal material on flat surface and side surface after cutting off

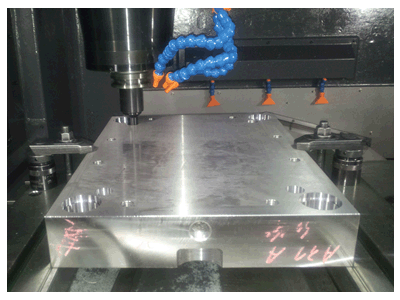

Tap, drill machining

Making TAP, HOLE and C/B manually or by machine

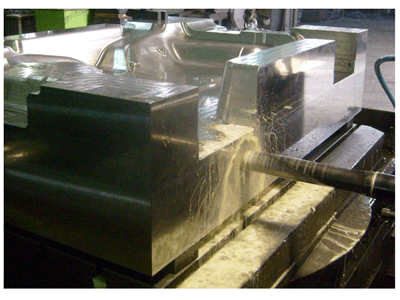

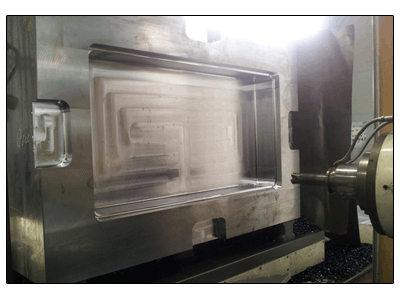

Pocket Machining

Making shape and core area on upper/lower plate by rough machining

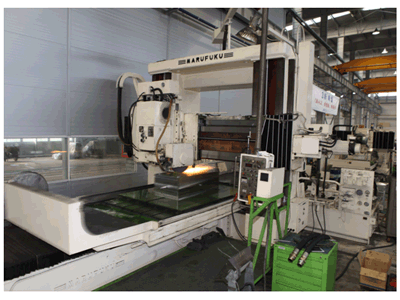

Grinding

Grinding for matching thickness tolerance and parallelization on PLATE after six-side, rough machining
Boring(Drill)

Making hole for mold assembly

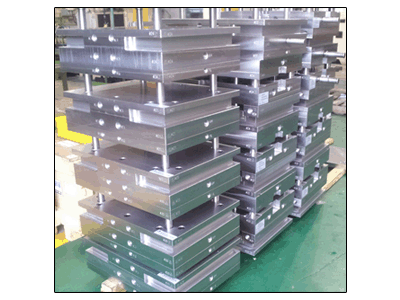

assembly

Assemble machined mold
